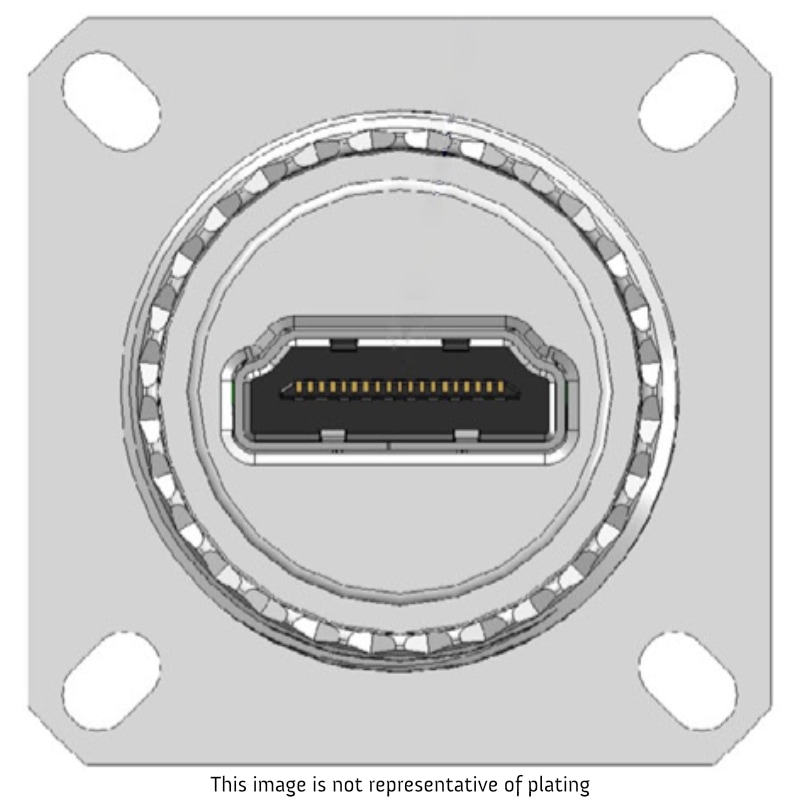

EMCA Connector Solutions HDMI Square Flange Receptacle Feedthrough, Size 17, Electroless Nickel Plating, 'N' Keyway, '0' Orientation.
Features
- Robust and Ruggedised Design, built for Reliability in Harsh Environments
Applications
Applications include making internal HDMI connections accessible outside enclosures or cabinets. Data and Power supply, as well as charging.
Contacts:
Copper Alloy
Contacts Plating:
Gold Flash Plating
HDMI Orientation:
0
HDMI Receptacles:
HDMI 2.0
HDMI Shield:
Copper Alloy
Manufacturer:
EMCA Connector Solutions
PCB / Insert:
- FR4
- UL94V-0
Connector Shell Style:
Square Flange Receptacle
Connector Series:
D38999 Series III
Voltage Rating:
40 VAC
Current Rating:
0.5 A
Shell Size:
17
Finish:
Electroless Nickel
Keyway Polarization:
N
Electrically Conductive:
Yes
Temperature Rating:
-40°C to +85°C
Mating Cycles:
> 500
Pin Mapping:
1:1 (e.g. Pin1 : Pin1)
Alternative Reference:
HDMIFTV
