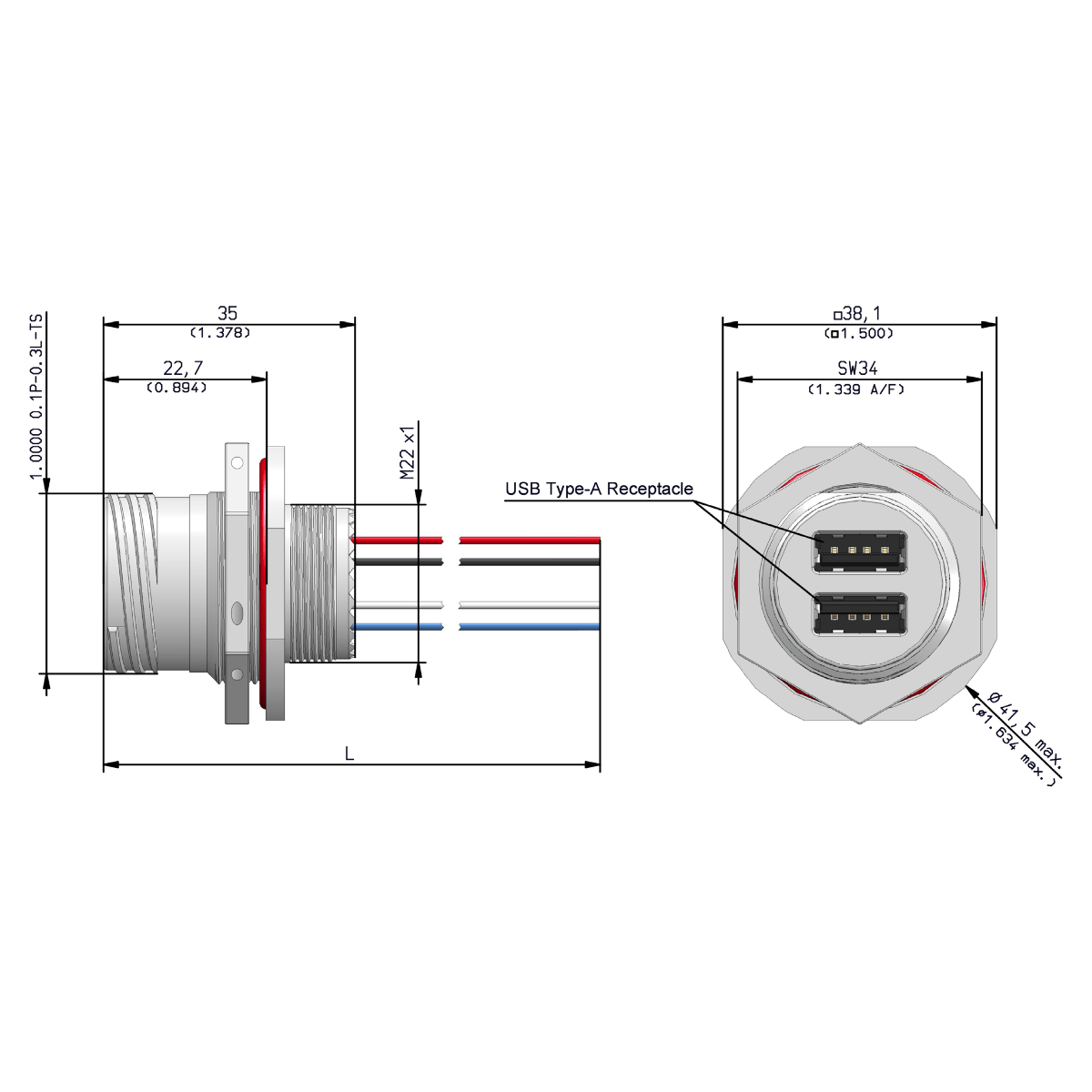

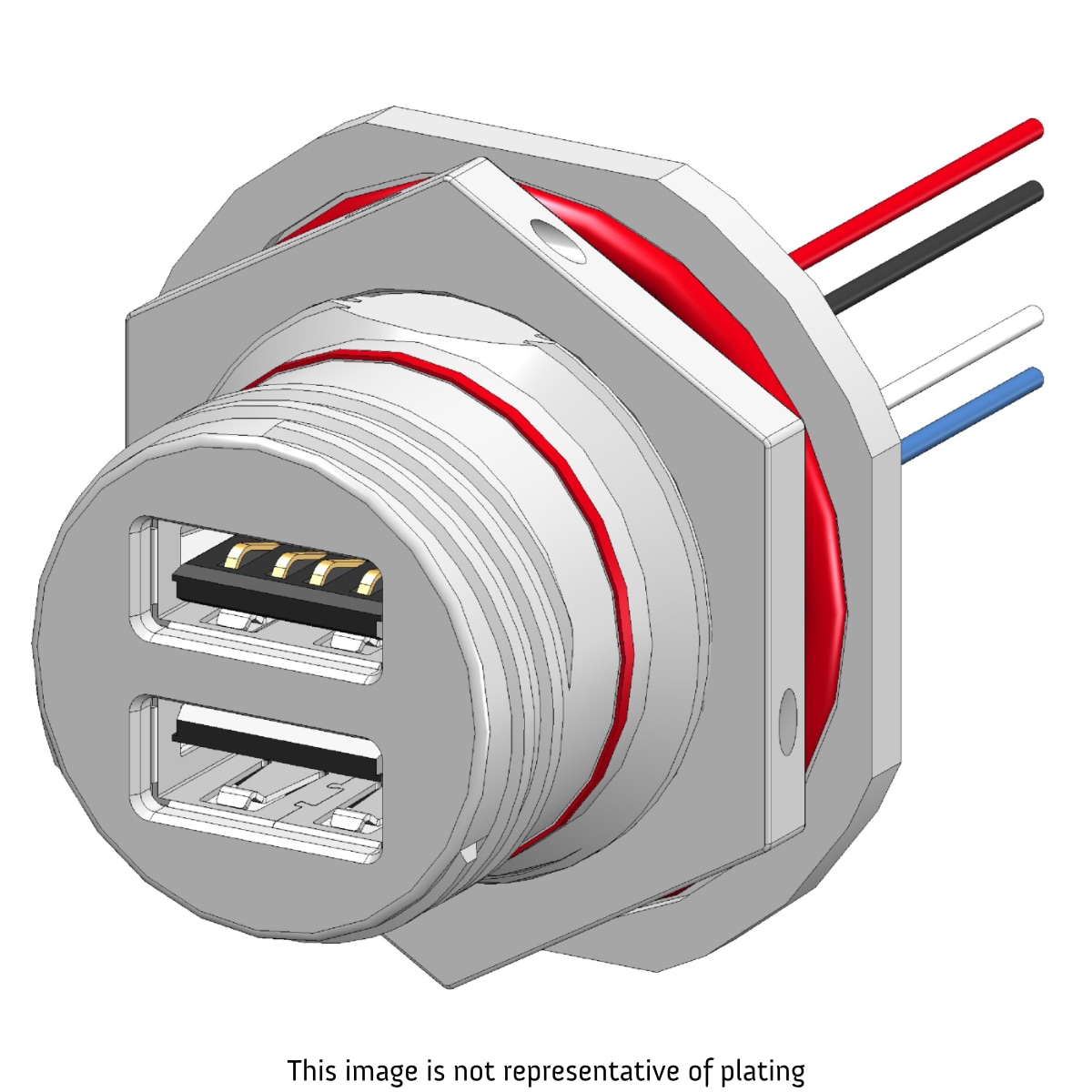

EMCA Connector Solutions Dual USB-A Jam Nut Receptacle for Power Supply, Shell Size 15, Tin Zinc Grey Plating, 'N' Keyway, '0' Orientation, 500mm Wire Length.
Features
- Robust and Ruggedised Design, built for Reliability in Harsh Environments
Applications
Applications include making internal USB connections accessible outside enclosures or cabinets. Data and Power supply, as well as charging.
Manufacturer:
EMCA Connector Solutions
Type-A Receptacle:
Pin 2 (D-) and Pin 3 (D+) - Short Circuited
USB A Shell:
Nickel Plated
USB-A Orientation:
0
Wire Length:
500 mm
Wire Type:
FLRY: 1 mm²
Connector Shell Style:
Jam Nut Receptacle
Connector Series:
D38999 Series III
Voltage Rating:
30 V (V_BUS)
Current Rating:
1.8 A (V_BUS)
Shell Size:
15
Finish:
Tin Zinc Grey
Keyway Polarization:
N
Electrically Conductive:
Yes
Temperature Rating:
-40°C to +85°C
Mating Cycles:
> 500
