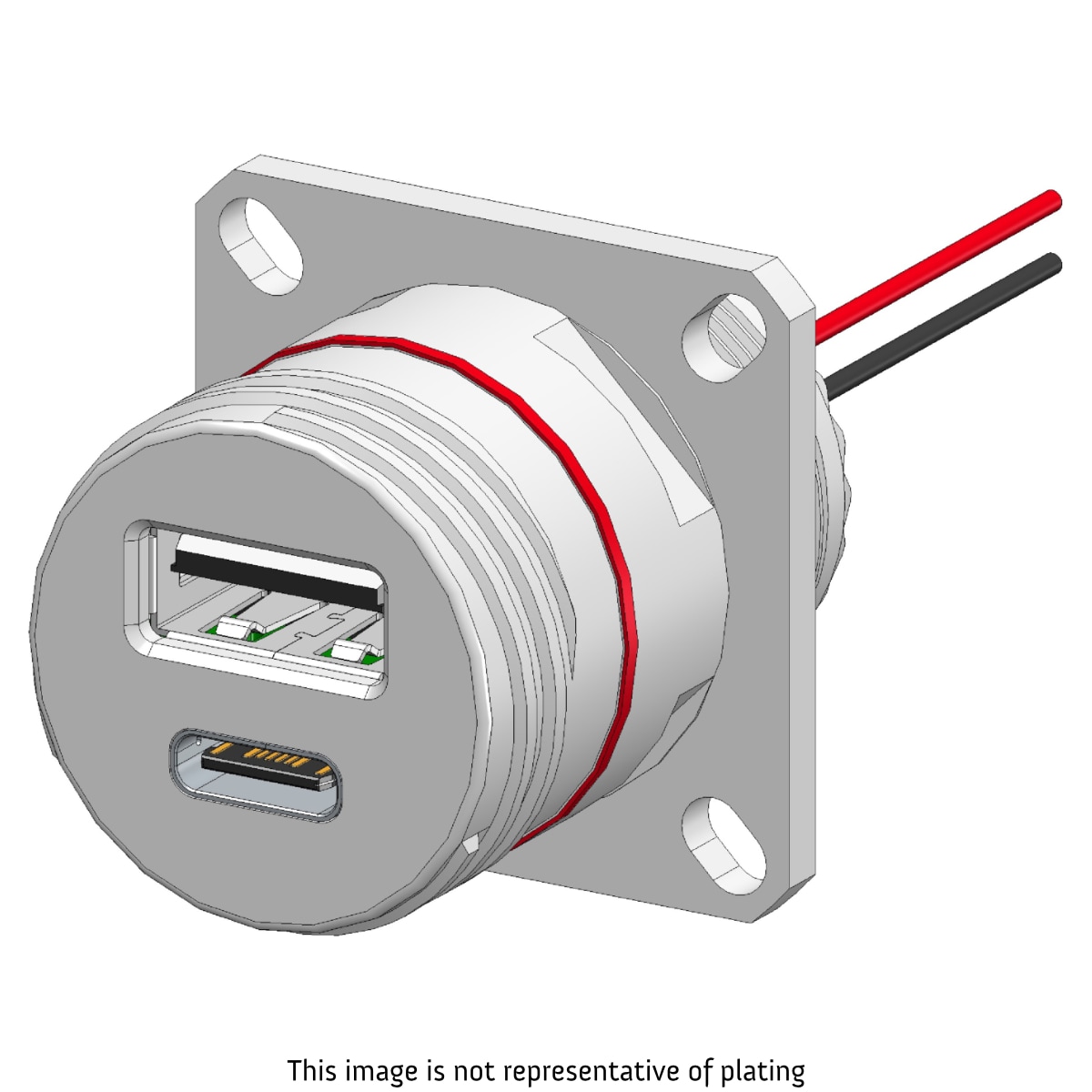

EMCA Connector Solutions Dual USB-A/C Square Flange Receptacle for Power Supply, Shell Size 15, Stainless Steel, 500mm Wire Length.
Features
- Robust and Ruggedised Design, built for Reliability in Harsh Environments
Applications
Applications include making internal USB connections accessible outside enclosures or cabinets. Data and Power supply, as well as charging.
Manufacturer:
EMCA Connector Solutions
Type-A Receptacle:
Pin 2 (D-) and Pin 3 (D+) - Short Circuited
Type-C Receptacle:
Pins A7 & B7 and A6 & B6 Connected
USB A/C Shell:
Nickel Plated
Wire Length:
500 mm
Wire Type:
FLRY: 1 mm²
Connector Shell Style:
Square Flange Receptacle
Connector Series:
D38999 Series III
Voltage Rating:
30 V / 20 V (USB-A/C) (V_BUS)
Current Rating:
1.8 A = USB A / 5 A = USB C (V_BUS)
Shell Size:
15
Finish:
Stainless Steel
Electrically Conductive:
Yes
Temperature Rating:
-40°C to +85°C
Mating Cycles:
> 5,000 / > 10,000
