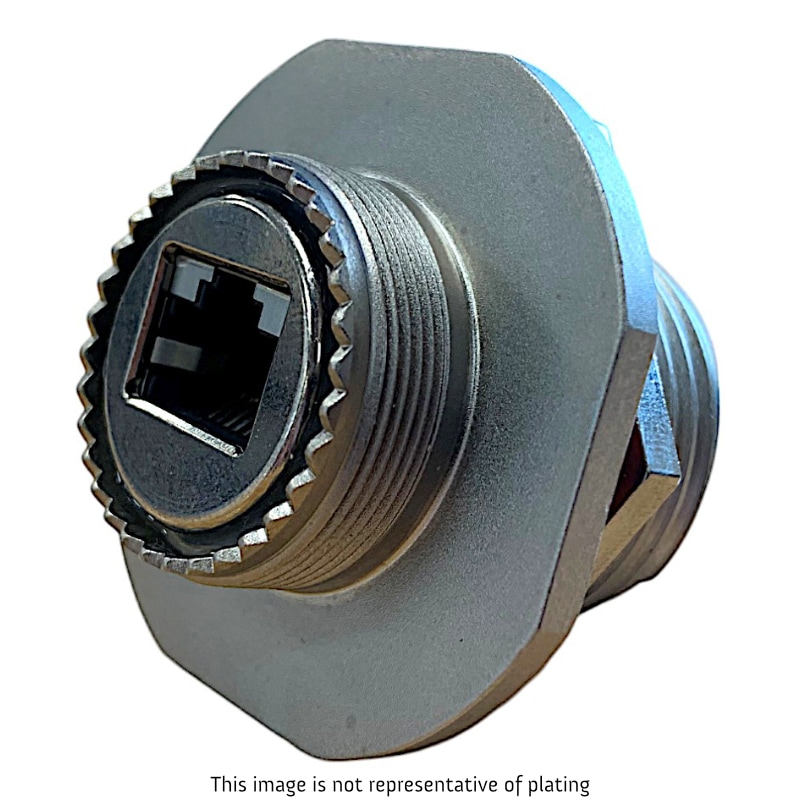

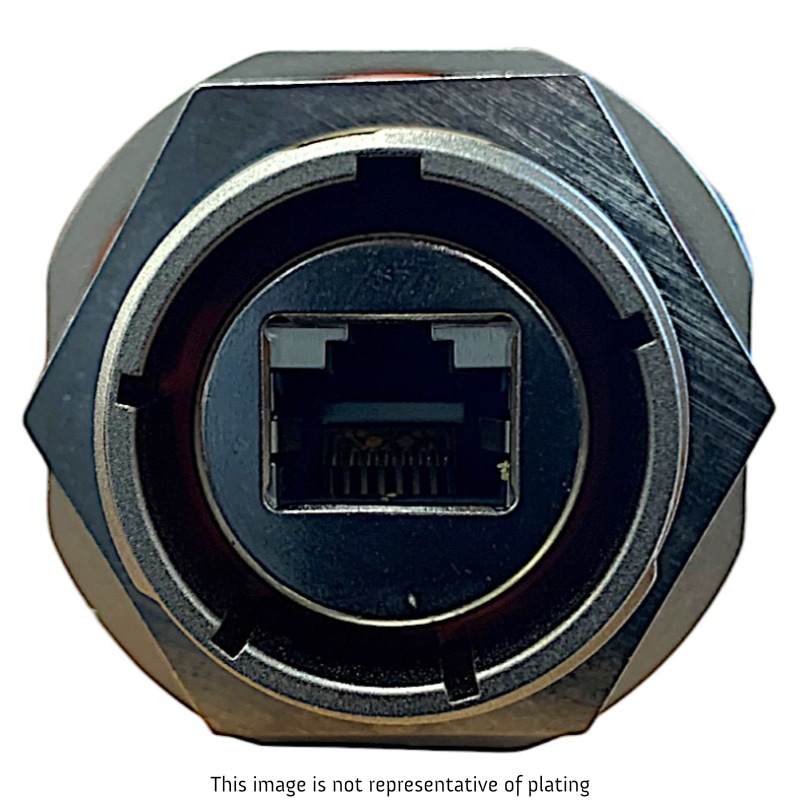

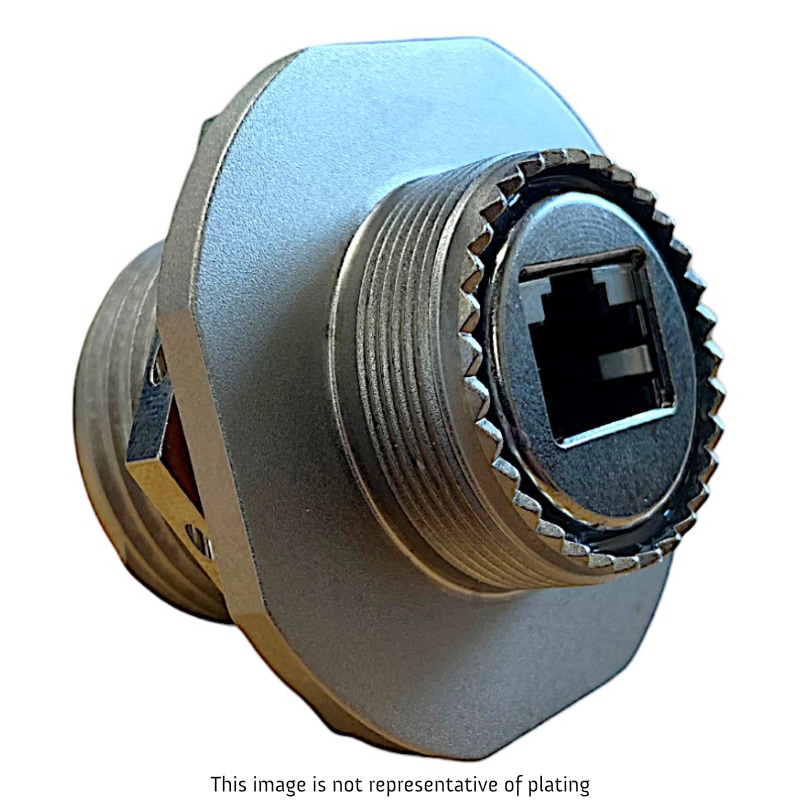

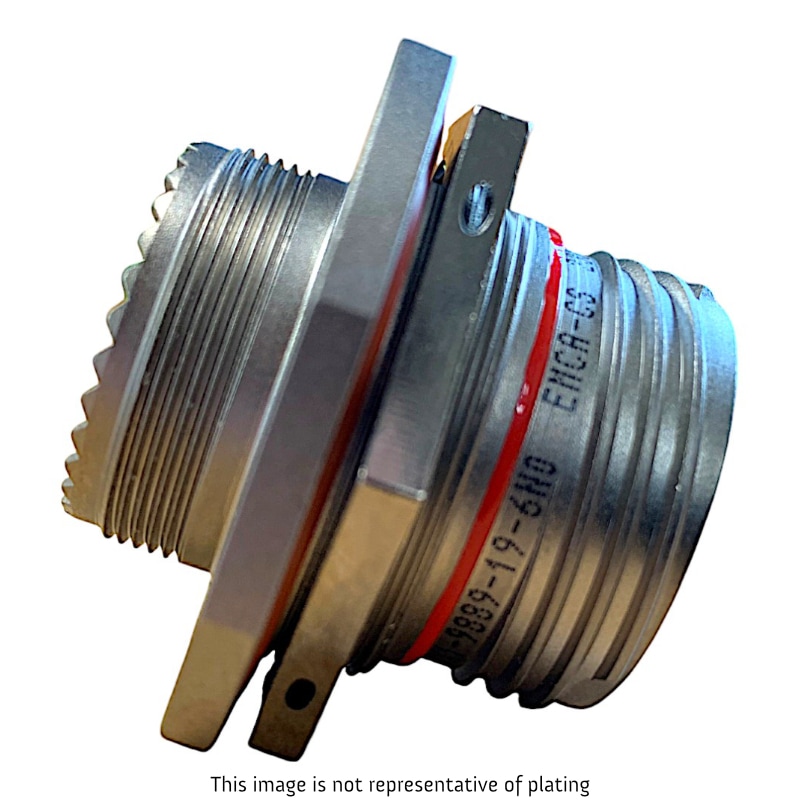

EMCA Connector Solutions RJ45 CAT.6A Feedthrough Sealed, Jam Nut Receptacle, Shell Size 19, Black Hybrid Plating, Keyway 'N', Orientation '0'
Manufacturer:
EMCA Connector Solutions
Connector Shell Style:
Jam Nut Receptacle
Connector Series:
D38999 Series III
Shell Size:
19
Finish:
Black Hybrid
Keyway Polarization:
N
RJ45 Orientation:
0
Electrically Conductive:
Yes
Voltage Rating (AC):
35V
Voltage Rating (DC):
50V
Temperature:
-40°C to +120°C
Mating Cycles:
>500
Data Transmission:
10 Gbit/s (500Mhz)
Pin Mapping:
1:1
RJ45 Housing:
Thermoplastic UL94 V-0
RJ45 Shield Plating:
Tin or Nickel
RJ45 Shield:
Copper Alloy
